| Specifications |
| Model |
CS-H3c-R100-1J4WKFL |
| Camera |
| Image Sensor |
1/2.7”Progressive Scan CMOS |
| Minimum Illumination |
0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| IR Night Vision Distance |
Up to 98 ft / 30 m |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
4mm @ F2.0, view angle: 82° (Horizontal), 98° (Diagonal)
2.8mm@F2.0，view angle: 100° (Horizontal), 125°(Diagonal)
|
| Lens Mount |
M12 |
| DNR |
3D DNR |
| WDR |
Digital WDR |
| Day / Night Switch |
IR-Cut filter with auto-switching |
| Video & Audio |
| Max. Resolution |
4MP, 2560 × 1440 |
| Frame Rate |
Max: 30fps; Self-Adaptive during network transmission |
| Video Compression |
H.265 / H.264 |
| Video Bit Rate |
Quad HD; Hi-Def; Full HD; Standard. Adaptive bit rate |
| Audio Bit Rate |
Self-Adaptive |
| Max. Bitrate |
4 Mbps |
| Network |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20 MHz |
| Security |
64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate |
11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps |
| Wi-Fi Pairing |
AP Pairing |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| Wired Network |
RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Function |
| Detection |
Human Shape Detection, Motion Detection Waving-Hand Detection |
| Customized Alert Area |
Supports |
| Integration |
Works with Alexa, Google Assistant, IFTTT |
| General Function |
Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Storage |
| Local Storage |
Supports microSD card (Up to 512 GB) |
| Cloud Storage |
Supports EZVIZ CloudPlay storage (Subscription required) |
| General |
| Operating Conditions |
-30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing) |
| IP Grade |
IP67 |
| Power Supply |
DC 12V / 1A |
| Power Consumption |
MAX. 9W |
| Dimensions |
72 × 72 × 157 mm (2.83 × 2.83 × 5.98 inch) |
| Packaging Dimensions |
227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch) |
| Weight(With Package) |
539 g (19.01 oz) |
| Net Weight |
330 g (11.64 oz) |

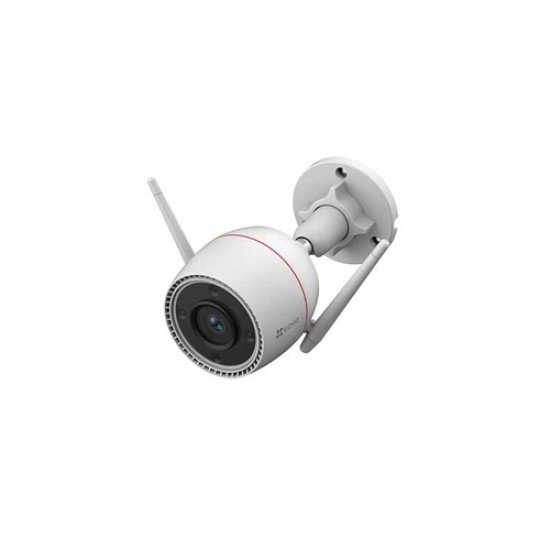

Ezviz H3c 4MP Smart Home Security Wi-Fi Camera
Ezviz H3c 4MP Smart Home Security Wi-Fi Camera is a cutting-edge surveillance solution designed to provide comprehensive security for your home or business. Featuring a high-resolution 4MP image sensor (2560 x 1440), this camera captures stunning video quality, ensuring that every detail is visible. With a minimum illumination of just 0.01 Lux, it performs exceptionally well in low-light conditions, and its IR night vision capability extends up to 98 feet (30 meters), allowing for clear monitoring even in complete darkness.
Equipped with a versatile 4mm lens, the H3c offers a horizontal viewing angle of 82 degrees and a diagonal angle of 98 degrees, making it ideal for covering wide areas. The camera's self-adaptive shutter and digital WDR (Wide Dynamic Range) technology enhance image quality by balancing light and dark areas, ensuring clear footage in varying lighting conditions.
Connectivity is seamless with support for Wi-Fi standards including IEEE802.11b/g/n, and it features robust security protocols such as WPA/WPA2 encryption to protect your data. The camera also supports local storage via microSD cards of up to 512GB, as well as cloud storage options through EZVIZ CloudPlay (subscription required).
Designed for durability, the H3c boasts an IP67 rating, making it resistant to dust and water, suitable for outdoor use in various weather conditions. Additional features include AI-powered human shape detection, motion detection, and customizable alert areas, enhancing its functionality as a smart security device.
With dimensions of 72 x 72 x 157 mm and a weight of 330 grams, the Ezviz H3c is compact and easy to install. Backed by a one-year warranty, this camera combines advanced technology with user-friendly features, making it an excellent choice for anyone looking to enhance their security system.
