| Attribute |
Specification |
| Image Sensor |
1/2.7 inch CMOS |
| Max. Resolution |
2880 (H) × 1620 (V) |
| Pixel |
5MP |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
PAL: 1/25s–1/100000s, NTSC: 1/30s–1/100000s |
| S/N Ratio |
>65 dB |
| Min. Illumination |
0.005 Lux/F1.6, 30IRE, 0 Lux IR on |
| Illumination Distance |
30 m (98.4 ft) |
| Illuminator On/Off Control |
Auto; manual |
| Illuminator Number |
3 |
| Pan/Tilt/Rotation Range |
Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
| Lens |
Fixed-focal |
| Mount Type |
M12 |
| Focal Length |
2.8 mm; 3.6 mm |
| Max. Aperture |
F1.6 |
| Field of View |
2.8 mm: 132° × 111° × 58°, 3.6 mm: 109° × 92° × 48° |
| Iris Type |
Fixed iris |
| Close Focus Distance |
2.8 mm: 0.9 m (3.0 ft), 3.6 mm: 1.6 m (5.2 ft) |
| DORI Distance |
See table below |
| Video |
See table below |
| Certifications |
CE, FCC, UL |
| Audio Interface |
One channel built-in mic (-A) |
| Video Output |
CVI/TVI/AHD/CVBS by one BNC port |
| Power Supply |
12V ±30% DC |
| Power Consumption |
Max 3.7W (12V DC, IR on) |
| Operating Temperature |
-40°C to +60°C (-40°F to 140°F); <95% (non-condensation) |
| Storage Temperature |
-40°C to +60°C (-40°F to 140°F); <95% (non-condensation) |
| Protection Grade |
IP67 |
| Casing |
Plastic throughout the whole casing |
| Camera Dimensions |
161.3mm×69.7mm×70.0mm(6.35″×2.75″×2.75″ ) |
| Net Weight |
0.19 kg (0.55 lb) |
| Gross Weight |
0.29 kg (0.64 lb) |

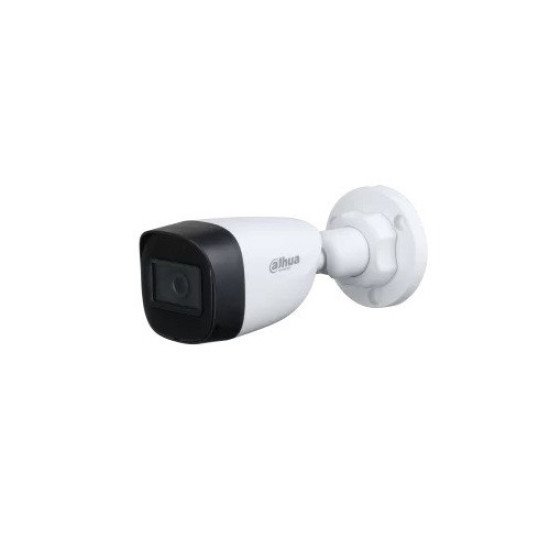

Dahua HAC-HFW1500C-A 5MP Starlight HDCVI IR Bullet CameraThe Dahua HAC-HFW1500C(-A) 5MP Starlight HDCVI IR Bullet Camera is a cutting-edge surveillance solution designed to deliver exceptional image quality and versatile performance. With a high-resolution 5MP sensor and progressive scanning system, it ensures crisp and clear visuals, making it ideal for a range of security applications. Equipped with a fixed-focal lens and multiple lens options (2.8mm and 3.6mm), the camera offers flexibility in capturing various fields of view, from wide angles to more focused perspectives. Its F1.6 aperture and advanced Iris control contribute to superior low-light performance, with a minimum illumination of 0.005 Lux/F1.6. The three illuminators provide an impressive 30-meter IR distance, ensuring reliable surveillance even in complete darkness. The camera's pan, tilt, and rotation capabilities cover a wide monitoring range, offering flexibility in positioning. It supports various video formats (CVI, AHD, TVI, and CVBS) with different frame rates and resolutions, catering to diverse system requirements. Key imaging features like Auto Day/Night switching, BLC/HLC/DWDR, and 2D Noise Reduction enhance overall image quality, while Smart IR adapts to changing lighting conditions intelligently. The privacy masking feature adds an extra layer of security by allowing users to configure up to 8 privacy zones. Certified for quality and safety standards (CE, FCC, UL), the camera boasts robust construction with an IP67 rating, ensuring durability and weather resistance. Its compact dimensions and lightweight design facilitate easy installation in various environments. The -A variant includes an audio interface with a built-in microphone, expanding surveillance capabilities. The camera's power-efficient design, with a maximum power consumption of 3.7W, ensures reliable 24/7 operation.The Dahua HAC-HFW1500C(-A) combines advanced features, flexible design, and robust construction, making it a top choice for those seeking a high-performance HDCVI IR bullet camera for comprehensive security solutions.
Features Dahua HAC-HFW1500C-A 5MP Starlight HDCVI IR Bullet Camera
- Advanced Image Sensor and Resolution: The Dahua HAC-HFW1500C(-A) features a high-performance 1/2.7-inch CMOS image sensor that delivers an impressive maximum resolution of 2880 (H) × 1620 (V), providing crystal-clear 5MP images. This progressive scanning system ensures optimal image capture for professional surveillance applications.
- Low-Light Excellence: With a remarkable minimum illumination of 0.005 Lux/F1.6 and an effective IR range of up to 30 meters (98.4 feet), this camera excels in low-light conditions. The three illuminators with auto/manual control enhance visibility, ensuring reliable performance day and night.
- Pan/Tilt/Rotation Flexibility: The camera's versatile design includes a pan range of 0°–360°, tilt range of 0°–90°, and rotation range of 0°–360°, providing comprehensive coverage for diverse monitoring needs.
- Lens Options for Varied Perspectives: Equipped with a fixed-focal lens type and M12 mount, users can choose between 2.8mm and 3.6mm focal lengths to achieve different fields of view. The maximum aperture of F1.6 ensures optimal light intake for clear and detailed footage.
- DORI Distance Guidelines: The DORI distance specifications offer a clear understanding of the camera's capabilities, helping users determine detection, observation, recognition, and identification distances based on the selected lens and scenario.
- Multi-Format Video Capabilities: Supporting various video formats, including CVI, AHD, TVI, and CVBS, the camera accommodates different surveillance systems. It provides flexible frame rates and resolutions, ensuring compatibility with diverse recording devices.
- Enhanced Imaging Features: The camera incorporates essential imaging features such as automatic day/night switching (ICR), BLC/HLC/DWDR for balanced exposure, and 2D noise reduction for clear images. The Smart IR technology adapts to varying lighting conditions.
- Certified Quality and Connectivity: Certified to meet international standards (CE, FCC, UL), the camera assures users of its quality and safety. The built-in microphone in the -A variant adds audio functionality, while the versatile video output choices enhance connectivity.
- Efficient Power Management: With a 12V ±30% DC power supply, the camera ensures reliable operation while consuming a maximum of 3.7W with IR on. This makes it energy-efficient for continuous surveillance.
- Durable Construction and Weather Resistance: Constructed with robust plastic throughout, the camera maintains durability while being IP67-rated for protection against dust and water. Its compact dimensions (161.3mm×69.7mm×70.0mm) and lightweight profile (0.19 kg net weight) facilitate easy installation.
Enhance your monitoring system with advanced features and reliable performance for every environment. Make your spaces safer with superior clarity and long-lasting durability. Explore our Security, HD Camera, and Dahua categories to find the ideal surveillance solution for your needs. Get yours today from Tech Valley and secure your property with confidence!
