| Audio and Video |
| IP Camera Input |
IP video input: 16-ch |
| Two-Way Talk |
Two-way audio: 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Recording |
| Resolution |
4K (3840 x 2160) resolution
HDMI output resolution: 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
VGA output resolution: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Record Rate |
Up to 8 Megapixels resolution recording |
| Video Detection And Alarm |
| Video Detection |
IP video input: 16-ch
Support H.265/H.264/MPEG4 video formats |
| Alarm Input |
Support various VCA detection alarm and VCA search
Alarm in/out: 16/4 |
| Playback And Backup |
| Sync Playback |
16-ch |
| Search Mode |
Yes |
| Playback Function |
Yes |
| Backup Mode |
Yes |
| Third Party Support |
| Third Party Support |
Third-party network cameras supported |
| Network |
| Interface |
4 SATA interfaces for 4HDDs
Network interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
USB interfaceFront panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0
Serial interface: 1 RS-485 (half-duplex), 1 RS-232, 1 keyboard (optional) |
| Ethernet Port |
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| Network Function |
Third-party network cameras supported
16/32-ch network cameras can be connected with 160M/256M incoming bandwidth
Incoming bandwidth: 160 Mbps
Outgoing bandwidth: 160 Mbps
Remote connection: 128 |
| Storage |
| Internal HDD |
SATA: 4 SATA interfaces for 4HDDs
Capacity: Up to 6TB capacity for each HDD |
| HDD Mode |
4 SATA interfaces |
| Auxiliary Interface |
| USB |
Front panel: 2 x USB 2.0;
Rear panel: 1 x USB 3.0 |
| Power |
| Power Supply |
100 to 240 VAC |
| Power Consumption |
Consumption(without hard disk and POE): ≤20 W |
| Construction |
| Dimensions |
445 x 390 x70 mm ( 17.5"x 15.3" x 2.8") |
| Net Weight |
Weight (without hard disk): ≤ 5 kg (11 lb) |

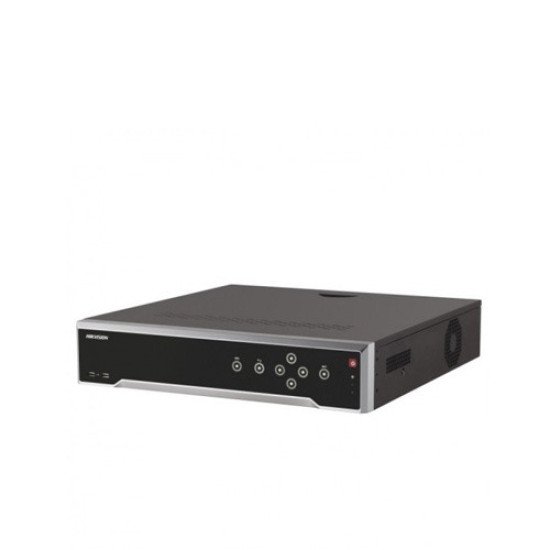

Hikvision DS-7716NI-K4 4K resolution 16 channel IP Network Video Recorder (NVR)
The Hikvision DS-7716NI-K4 is a robust and advanced 16-channel IP Network Video Recorder (NVR) designed for high-performance surveillance systems. Boasting 4K resolution recording capability, it can handle up to 16 IP video inputs, providing crystal-clear and detailed footage for comprehensive security coverage. With support for various video formats, including H.265, H.264, and MPEG4, this NVR ensures efficient compression and storage utilization without compromising video quality. The HDMI and VGA outputs offer versatile display options, with HDMI supporting 4K (3840 x 2160) resolution at 30Hz and VGA supporting various resolutions up to 1920 x 1080. The recording capabilities extend to 8-megapixel resolution, delivering exceptional clarity for critical applications. The DS-7716NI-K4 is equipped with advanced video detection and alarm features, supporting VCA detection alarm and VCA search. It offers 16 alarm inputs and 4 alarm outputs, enhancing the system's ability to respond to security events effectively. For playback and backup, the NVR supports synchronous playback for all 16 channels and offers flexible search and backup modes. It features multiple interfaces, including 4 SATA interfaces for up to 4 HDDs, 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces, and USB ports for convenient data management. The network capabilities are robust, supporting third-party network cameras and accommodating up to 32 network cameras with a total incoming bandwidth of 160 Mbps. The NVR facilitates remote connections for up to 128 devices, allowing users to monitor their surveillance system from virtually anywhere. The construction of the DS-7716NI-K4 reflects durability and efficiency, with dimensions of 445 x 390 x 70 mm and a weight of 5 kg (without hard disk). Its power supply accommodates 100 to 240 VAC, and the power consumption is ≤20 W (without hard disk and POE). With its comprehensive features and high-performance capabilities, the Hikvision DS-7716NI-K4 is an excellent choice for demanding surveillance applications.
