| Video compression |
H.265+/H.265/H.264+/H.264 |
| Encoding Resolution |
When 1080p Lite mode not enabled: 4 MP lite/3
MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p
lite/VGA/WD1/4CIF/CIF |
| Frame Rate |
Main stream:
When 1080p Lite mode is not enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p
lite/720p/WD1/4CIF/VGA/CIF@25fps
(P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps
(P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps
(P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Video bit rate |
2 Kbps to 6 Mbps |
| Dual stream |
support |
| stream type |
video video and audio |
| Audio bit rate |
64 Kbps |
| Video and audio |
— |
| Ip video Input |
2-ch
Up to 4 MP resolution
Supports H.265+/H.265/H.264+/H.264 IP cameras |
| Analog video input |
32-ch – BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI input |
4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
Note: The 3 MP signal input is only available for channel 1/2/3/4. |
| AHD Input |
4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI input |
080p25, 1080p30, 720p25, 720p30 |
| CVBS input |
PAL/NTSC |
| CVBS output |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| HDMI1/ VGA output |
VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz,
1280 × 720/60Hz, 1024 × 768/60Hz
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz,1920 × 1080/60Hz,
1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio Input |
1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio output |
1-ch, RCA (Linear, 1 KΩ) |
| Two way audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1
st audio input) |
| synchronous playback |
16-ch |
| Remote connections |
128 |
| Network protocols |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI,
UPnP™, HTTPS, ONVIF |
| Network interface |
1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| SATA |
2 sata interface |
| Capacity |
p to 8 TB capacity for each disk |
| serial interfaces |
RS-485 (half-duplex) |
| usb interface |
Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0 |
| More Information |
Audio compression: G.711u
Video / Audio output: —
network management: —
Hard disk: —
capacity: Up to 8 TB capacity for each disk
External Interface: — |

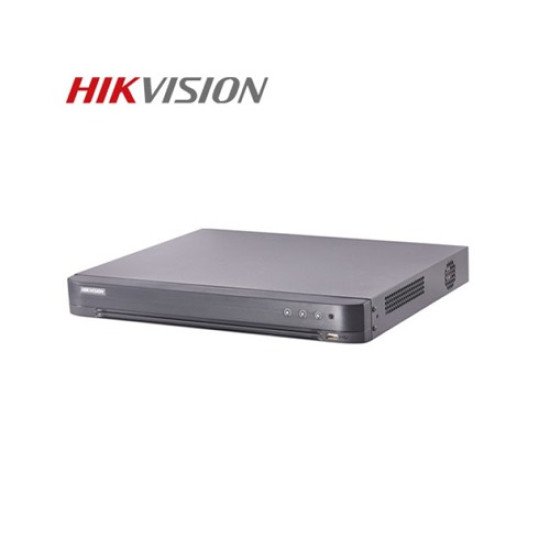

Hikvision DS-7232HQHI-K2 Turbo HD DVR
Introducing the Hikvision DS-7232HQHI-K2 Turbo HD DVR, a cutting-edge surveillance solution that ensures the safety and security of your home or business. This advanced DVR is packed with impressive features that deliver high-quality videos and convenience like no other! Featuring Turbo HD technology, the DS-7232HQHI-K2 Turbo HD DVR displays crystal-clear 1080p images, allowing you to monitor your surroundings with amazing clarity. With its support for HD-TVI, AHD, CVI, and CVBS analog cameras, this DVR offers great flexibility for integrating with your existing security system.
