| Cable Type |
U/UTP (Unshielded) |
| Conductor |
23AWG, Solid Bare Copper |
| Insulation |
HDPE |
| Pairs Quantity |
4 |
| Outer Sheath |
CM, CMR, LSZH, PE, PVC |
| Outer Diameter |
6.3±0.3mm (PVC, LSZH, PE, CM, CMR)
5.6±0.3mm (CMP)
|
| Operating Temperature Range |
– 20°C ~+60°C |
| Standard Compliance |
ISO/IEC 11801
ANSI/TIA.EIA-568.2-D
IEC 61156-5
EN 50399
EN 50173-1
|

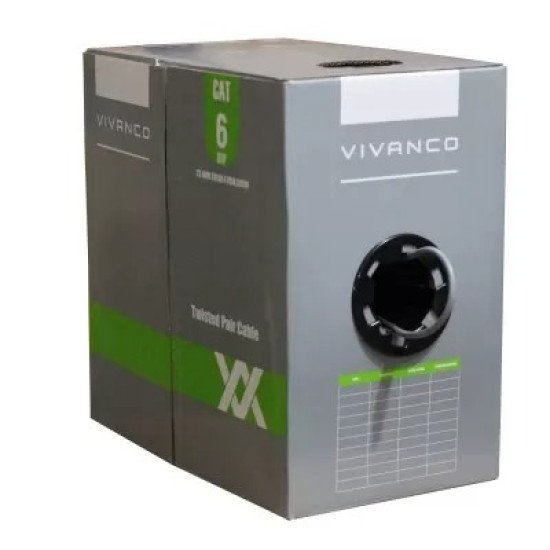

CAT6 4 PAIR U UTP CABLE
The CAT6 4 PAIR U UTP CABLE features solid bare copper conductors with an outer diameter of 6.3±0.3mm, ensuring reliable signal transmission and minimizing interference. The insulation is made of high-density polyethylene (HDPE), providing excellent resistance to water, oil, and other chemicals. The cable meets various standards, including ISO/IEC 11801, ANSI/TIA.EIA-568.2-D, IEC 61156-5, EN 50399, and EN 50173-1. This means it can be used in a wide range of environments and applications without compromising performance or safety. In terms of specifications, the cable includes four pairs of U/UTP cables with a length of approximately 2 meters. The pair count and outer diameter may vary depending on the type of cable and insulation material used. Overall, the CAT6 4 PAIR U UTP CABLE is a reliable and versatile option for any application requiring high-quality data transmission cables. With its durable construction and compliance with industry standards, this cable is sure to meet your needs and provide consistent performance over a long period.
